RTI NEO Series

RTI released world’s first RGB white light, analog modulated beam array with real scanners. This allows for completely new effects that could have never been created before: Wave effects of parallel beams, three-dimensional twists of beams in mid-air and spectacular color-fades make the RTI NEO SIX RGB a spectacular new lighting effect for professional stage productions.

The initial beam positioning can also be made through DMX, and the unit can save the settings that were made. So when setting up the stage, each beam can be set to its individual zero-position via DMX, and on exiting the setup mode it preservers the set position – even on power loss. Having this feature makes it easy to set beam positions, e.g. on mirrors, or to avoid manual beam aligning when the units hang high up on the truss.
Besides the general beam positioning and the beam-movement-effects it is also possible to project basic patterns with each output, e.g. circles to create tunnel effects or lines to generate planes in mid-air. These patterns are already built-in and can easily be triggered by DMX.
The RTI NEO SIX RGB has been especially developed for professional touring and production companies. The effect becomes most spectacular when several NEO SIX play side by side.



RTI NEO Series

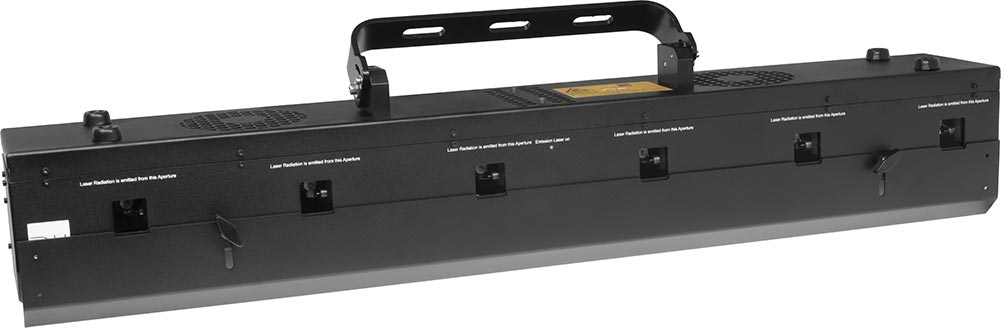

The RTI NEO Six is a laser light beam array with 6 single whitelight RGB beam outlets with XY scan set
Power level:
1000 x 152 x 118 mm
Power consumption:
360 W
ca. 8kg
Click for more details on RTI NEO Series



The RTI NEO SIX is a whitelight RGB beam array with analog modulation and six beam outlets. It is controlled through DMX and thus is suitable for easy implementation to existing lighting setups. Each beam output comes with its own XY scan set with 45 [email protected]° ILDA.
Besides the single beam, the RTI NEO SIX offers 10 standard preset patterns like a square, a circle, a triangle and others which can be displayed by all six laser outputs.

The RTI NEO SIX is equipped with 6 RGB laser diode modules.
Each RGB module is balanced at a power of 135 mW / 638 nm red, 70 mW / 520 nm green and 95 mW / 450 nm blue for a brilliant white balance. Powers are measured after apertures and are balanced on manufacturing.

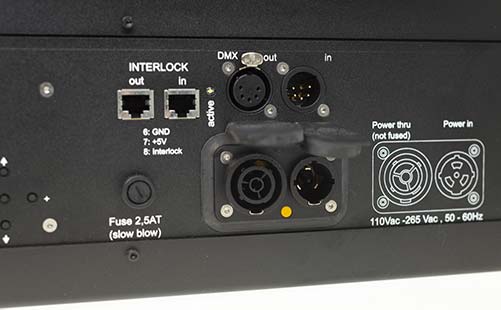

The RTI NEO SIX is controlled via DMX thus it is possible to create many different chaser, beam and fan laser light effects. Most important settings can also be adjusted via integrated display. The beam array can easily be integrated into an existing lighting setup.

A great visual effect for stages, live gigs, nightclubs, show productions and any event which requires a unique visual enhancement.
